IOLMaster — Axial Length Measurement
Zooming the Graph Display.

Zooming the Signal Curves Display

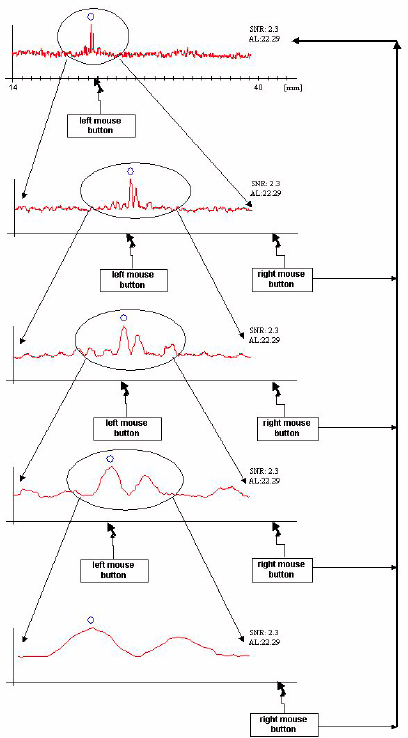

The system allows zooming the graphs in four steps to improve the presentation of signal curves:

Move the cursor on the longitudinal axis (X-axis) to the desired center of the zoomed image and press the left mouse button. You may repeat this procedure four times.
To return to the original view (zooming out), place the cursor at any position on the longitudinal axis and press the right mouse button.

Zeiss IOL Master Axial Length Measurements

Note
In zoomed views, the axial length scale is not visible.
